An Intelligent LiDAR with Adaptive Focus

Overview

αLiDAR is a novel panoramic LiDAR system with an active rotation mechanism that expands the field of view, eliminates blind spots, and generates high-resolution 3D point clouds. An uncertainty-aware pose estimation algorithm ensures centimeter-level accuracy. Online trajectory optimization enables adaptive, dense scanning of specified regions of interest, significantly enhancing 3D perception for autonomous driving and robotics.

  • An Intelligent LiDAR with Adaptive Focus 0
  • An Intelligent LiDAR with Adaptive Focus 1
Technical name of innovation
αLiDAR: An Intelligent LiDAR with Adaptive Focus
Research completion
2024
Commercialisation opportunities
Technology licensing; collaborative R&D
Problem addressed

Existing LiDARs suffer from low resolution with gaps between scan lines, and limited field of view. Approaches such as adding more laser channels or deploying multiple LiDARs significantly increase cost and complexity, failing to adequately balance field of view, resolution, cost, and deployment flexibility.

Innovation

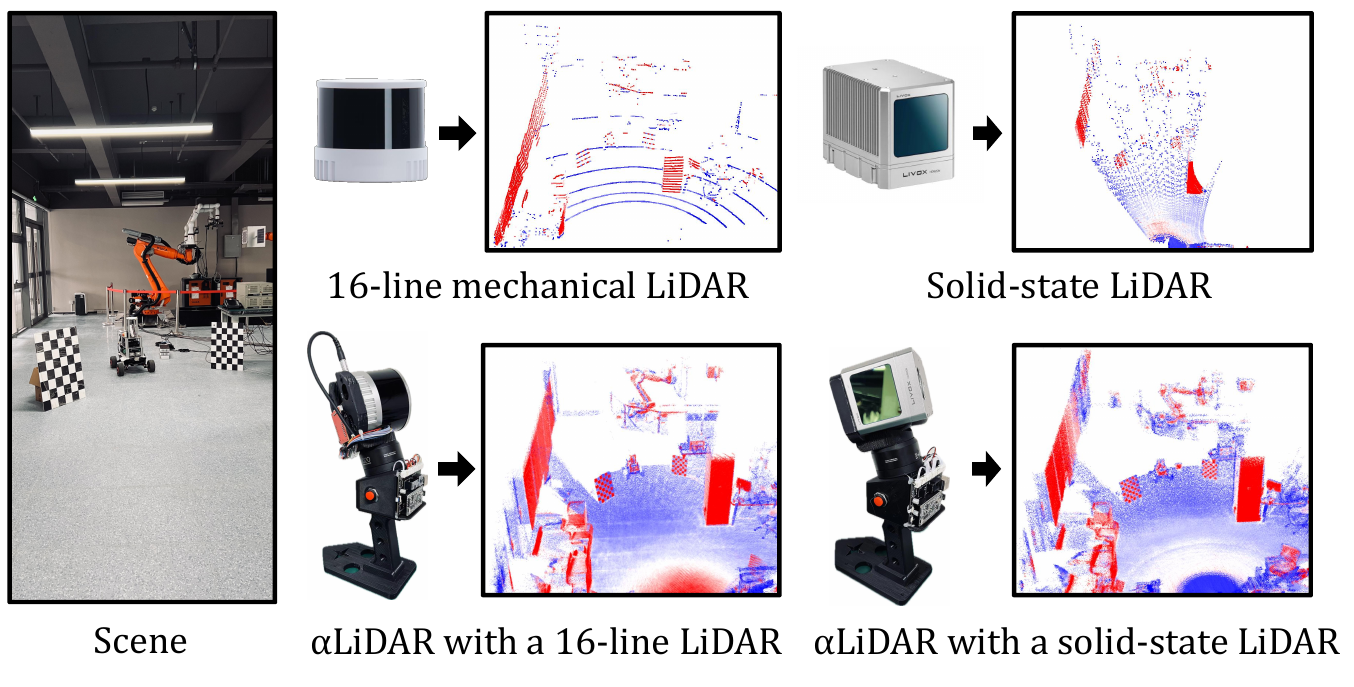

  • Inspired by human head rotation, αLiDAR adds an active rotation mechanism to standard LiDARs. By rotating the sensor into previously blind areas and stacking multi-frame point clouds, the system achieves panoramic, high-resolution 3D sensing at minimal additional cost, expanding the field of view by up to 6×.
  • A point-level uncertainty propagation method tracks measurement uncertainty for each laser point throughout the state estimation pipeline. By weighting point cloud registration contributions according to uncertainty, the system achieves centimeter-level pose accuracy even under combined sensor rotation and platform motion, enabling distortion-free, high-fidelity 3D reconstruction.
  • An online trajectory optimization algorithm adaptively redirects LiDAR scanning towards user-specified regions of interest (ROI) in real time, concentrating sensing resources on target areas such as road surfaces or specific objects, enabling dense, focused perception that enhances downstream tasks including obstacle detection and traffic monitoring.
Key impact
  • Compared to conventional LiDARs, αLiDAR improves 3D mapping accuracy by 8.5×, coverage by 2×, and point cloud density by 1.6×. Effective sensing range and the number of perceivable objects are both increased by 1.8×, significantly elevating perception quality for autonomous driving and intelligent transportation.
  • The system is hardware-agnostic and compatible with multiple LiDAR models. Full-stack open-source hardware designs (CAD, PCB) and algorithm code are available on GitHub with nearly 1,000 stars in total, facilitating rapid adoption and deployment across scenarios including mobile robots and roadside infrastructure.
  • αLiDAR received the Best Artifact Award and Best Runnerup Demo Award at ACM MobiCom 2024, and was recognized as one of the Top 10 workshops of 2025 on Huawei Charspark, demonstrating its broad impact across both the academic and industry communities.
Award
  • ACM MobiCom 2024 Best Artifact Award
  • ACM MobiCom 2024 Best Runnerup Demo Award
  • Top 10 workshops of 2025 on Charspark (Huawei)
Application
  • Autonomous driving — panoramic 3D perception and high-precision environment mapping for self-driving vehicles
  • Embodied intelligence robots — panoramic, high-resolution environmental sensing and obstacle detection for mobile robots
  • Smart transportation infrastructure — dense roadside 3D sensing for traffic monitoring and management
